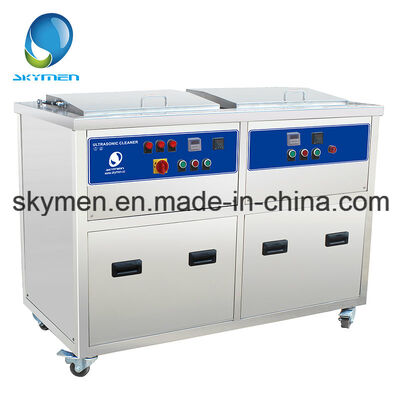

Skymen 28kHz 360L Crankshaft Turbine Parts Engine Cylinder Wash Machine
The Skymen 28kHz 360L ultrasonic cleaning machine is specifically designed for automotive parts cleaning, including crankshafts, turbine components, and engine cylinders. This industrial-grade equipment utilizes advanced ultrasonic technology to deliver thorough cleaning while extending part lifespan and reducing operational costs.
How Ultrasonic Cleaning Technology Works
Ultrasonic cleaning operates by converting sound energy into mechanical vibration. Ultrasound waves radiate through the cleaning solution, creating microscopic bubbles that vibrate under sound wave influence. When these bubbles collapse, they generate intense shock waves producing pressures up to 10¹²-10¹³ PA and localized high temperatures. This cavitation process effectively separates insoluble contaminants and disperses them into the liquid solution.
Operational Advantages
Easy to operate with automated cleaning capabilities
Cost-effective filtration system included
Customizable tank sizes and configurations
Brand customization options available
Standard Filtration System
Includes pump, stainless steel filter, and oil catch can for comprehensive cleaning solution management.
JTS Series Technical Specifications
| Model No. |
JTS-1030 |
JTS-1036 |
JTS-1060 |
JTS-1072 |
JTS-1108 |
JTS-1144 |
| Tank Dimension (mm) |
500×406×500 |
500×460×550 |
700×650×650 |
1000×600×600 |
1000×900×600 |
1200×1000×800 |
| Overall Dimension (mm) |
680×586×850 |
680×640×900 |
900×850×1000 |
1200×800×950 |
1240×1140×950 |
1440×1240×1150 |
| Max. Capacity |
101L |
126L |
295L |
360L |
540L |
960L |
| Construction Case |
SUS 304 (Mirror Shining Image Available) |
| Construction Tank |
SUS 304 / 316L |
| Ultrasonic Power (Max.) |
1500W |
1800W |
3000W |
3600W |
5400W |
7200W |
| Ultrasonic Frequency |
28kHz/40kHz/68kHz/80kHz/120kHz |
| Max. Heating Temp. |
20~80°C Adjustable |
| Heating Power |
3KW |
4.5KW |
6KW |
9KW |
12KW |
24KW |
| Timer |
0~30min Adjustable |
Additional Features
- Drain: ¾" Valve
- Lid & Basket: Take-off/Strut Lid; SUS 304
- Cleaning Tank Power: AC220V/380V/415V/440V, 3 Phase
- Generator Power: AC110V/220V/240V, 1 Phase
- Generator: With Sweep Mode and Remote Control
- Multi-direction Castors with Brake
- 1 Year Comprehensive Warranty
Industrial Applications
The JTS series single tank ultrasonic cleaning system features replaceable transducer boxes and generators that can be built-in or separate. Ideal for automotive parts washing, engine block cleaning, workshop sonic bath applications, and effective removal of rust, carbon, paint, and heavy oils without damaging components.
Quality Assurance
Skymen implements rigorous quality control throughout the manufacturing process. Our team conducts step-by-step raw material inspections, production process monitoring, and comprehensive product testing. Each unit undergoes minimum 4-hour operational testing before packaging to ensure 100% performance compliance.
Company Profile
Skymen Cleaning Equipment Shenzhen Co., Ltd. brings over 7 years of specialized experience in ultrasonic cleaning technology. As a leading manufacturer with integrated R&D, production, and sales capabilities, we deliver high-quality standard and custom-designed ultrasonic cleaning solutions. Our engineering team provides professional design suggestions and technical drawings to meet specific customer requirements.
